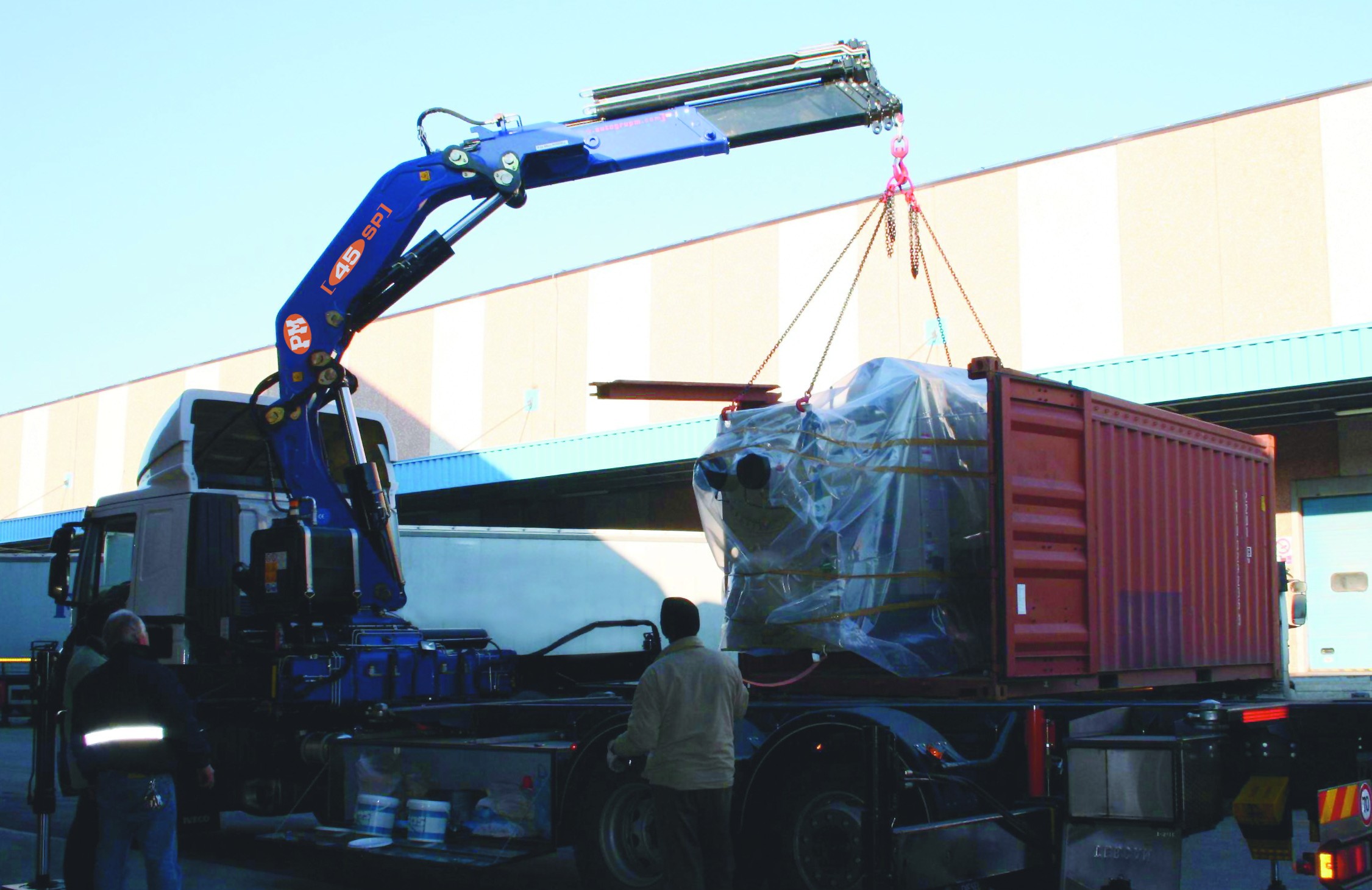

PM 45-Ton Knuckle Boom Crane

The PM 45-ton knuckle boom (articulating) crane is part of PM’s truck-mounted crane range. This page is a model reference for specs and documentation, plus parts and service for this model. PM articulating cranes are comparable to Fassi, Cormach, Hiab, Palfinger, Atlas, Amco Veba, Heila and IMT cranes.

Available 45-ton configurations, with maximum lift and maximum reach for each model:

• Model 45022 SP — max lift 1178, max reach 25’3
• Model 45023 SP — max lift 8863, max reach 32’2
• Model 45024 SP — max lift 6834, max reach 39’4
• Model 45025 SP — max lift 5071, max reach 47’7
• Model 45026 SP — max lift 3968, max reach 54’4
• Model 45027 SP — max lift 3086, max reach 62’4
• Model 45028 SP — max lift 2457, max reach 70’1
• Model 45024 SP + J903 — max lift 1874, max reach 71’10
• Model 45024 SP + J904 — max lift 1764, max reach 71’10
• Model 45025 SP + J703 — max lift 1698, max reach 73’4
• Model 45025 SP + J904 — max lift 1433, max reach 79’3
• Model 45026 SP + J703 — max lift 1433, max reach 80’1

Download the 45-ton crane brochure: 45_Ton_PM_Articulating_Crane_Brochure_english.pdf, 45_Ton_Knuckleboom_Brochure_metric.pdf.

Parts for this crane

We stock and ship parts and service items for this PM knuckle boom crane model, including cylinder seal kits and seals, sliding blocks and wear pads, Scanreco radio remote parts, and hydraulic fittings, hoses, valves and filters. Browse the full PM crane parts catalog, or call (877) 697-6272 with your model and serial number and we will match the exact part for your crane.
