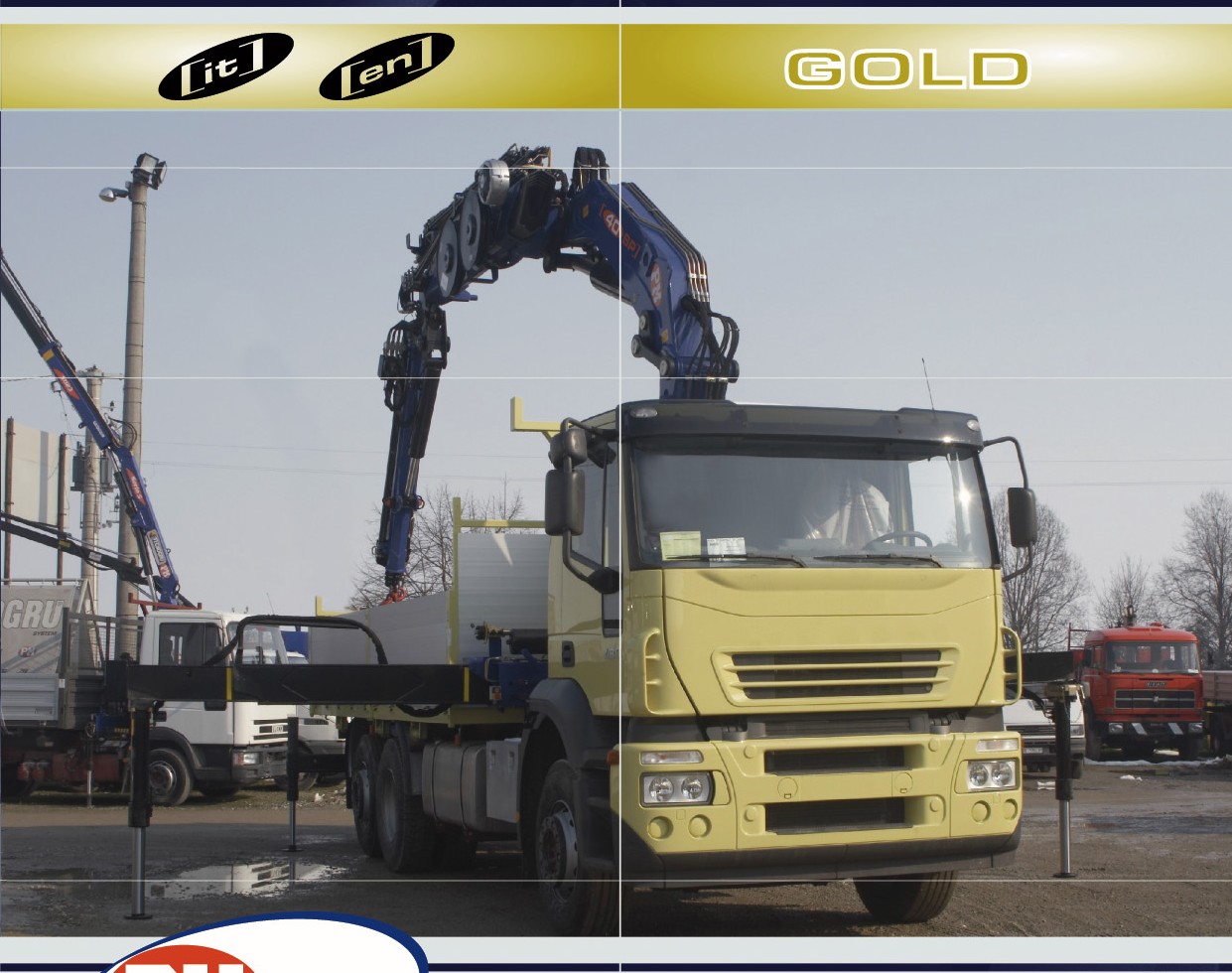

PM 40-Ton Knuckle Boom Crane

The PM 40-ton knuckle boom (articulating) crane is part of PM’s truck-mounted crane range. This page is a model reference for specs and documentation, plus parts and service for this model. PM articulating cranes are comparable to Fassi, Cormach, Hiab, Palfinger, Atlas, Amco Veba, Heila and IMT cranes.

Available 40-ton configurations, with maximum lift and maximum reach for each model:

• Model 40022 SP — max lift 9170, max reach 26’11
• Model 40023 SP — max lift 7010, max reach 33’10
• Model 40024 SP — max lift 5370, max reach 40’10
• Model 40025 SP — max lift 4070, max reach 48’7
• Model 40026 SP — max lift 3180, max reach 54’9
• Model 40027 SP — max lift 2500, max reach 62’8
• Model 40023 SP + J903.20 — max lift 2310, max reach 60′
• Model 40024 SP + J903.20 — max lift 1760, max reach 67’3
• Model 40024 SP + J904.20 — max lift 1430, max reach 73’2
• Model 40025 SP + J903.20 — max lift 1180, max reach 74’4
• Model 40025 SP + J904.20 — max lift 950, max reach 80’5
• Model 40026 SP + J702.20 — max lift 1190, max reach 74’8
• Model 40026 SP + J703.20 — max lift 960, max reach 80’5

Download the 40-ton crane brochure: 40_ton_pm_articulating_crane_brochure_english.pdf.

Parts for this crane

We stock and ship parts and service items for this PM knuckle boom crane model, including cylinder seal kits and seals, sliding blocks and wear pads, Scanreco radio remote parts, and hydraulic fittings, hoses, valves and filters. Browse the full PM crane parts catalog, or call (877) 697-6272 with your model and serial number and we will match the exact part for your crane.
