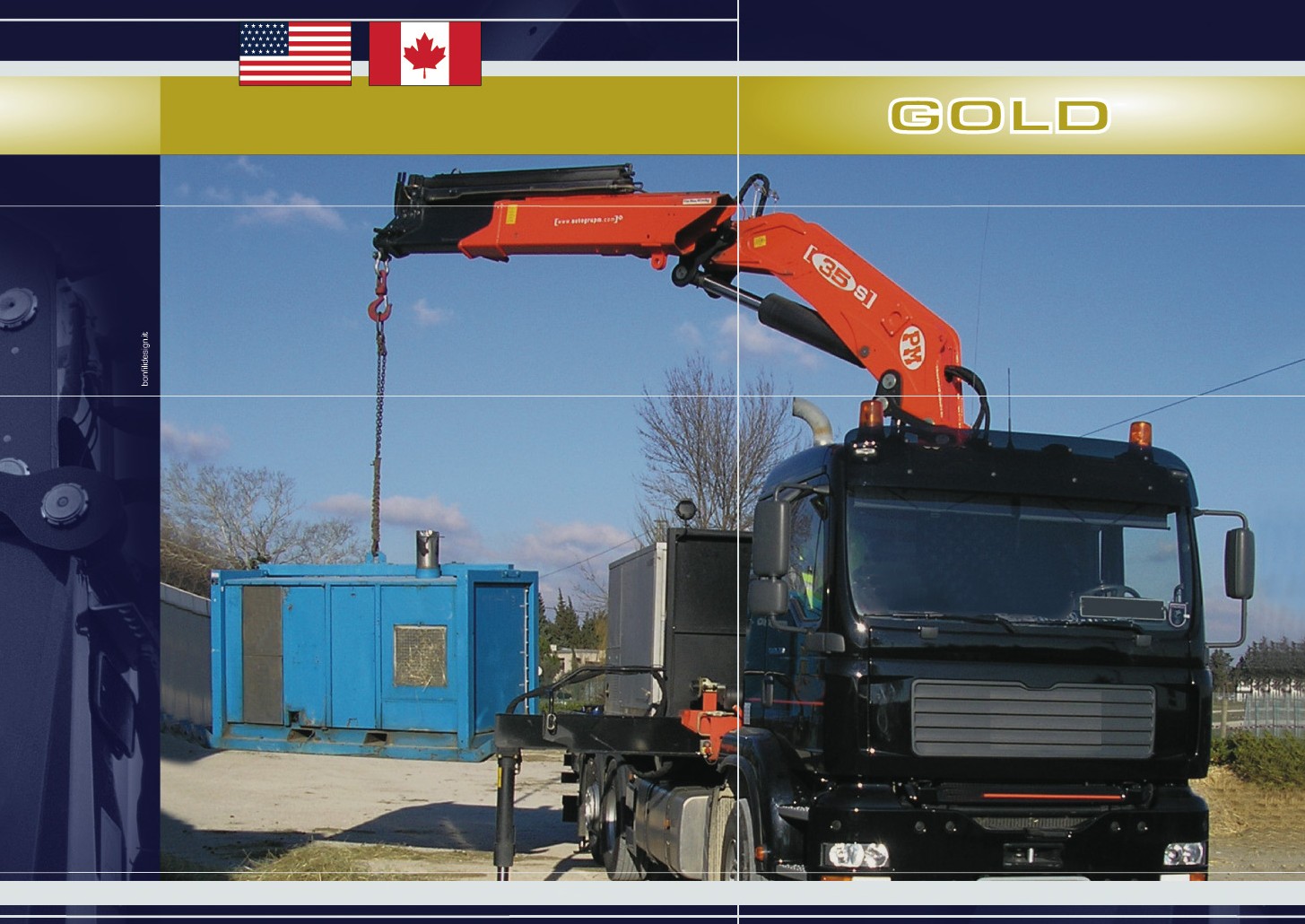

PM 35-Ton Knuckle Boom Crane

The PM 35-ton knuckle boom (articulating) crane is part of PM’s truck-mounted crane range. This page is a model reference for specs and documentation, plus parts and service for this model. PM articulating cranes are comparable to Fassi, Cormach, Hiab, Palfinger, Atlas, Amco Veba, Heila and IMT cranes.

Available 35-ton configurations, with maximum lift and maximum reach for each model:

• Model 35022 S — max lift 8600, max reach 27’1
• Model 35023 S — max lift 6520, max reach 33’10
• Model 35024 S — max lift 5100, max reach 40’10
• Model 35025 S — max lift 3690, max reach 48’9
• Model 35026 S — max lift 2840, max reach 55’7
• Model 35027 S — max lift 2280, max reach 62’8
• Model 35023 S + J903.20 — max lift 2290, max reach 60′
• Model 35024 S + J903.20 — max lift 1720, max reach 67’3
• Model 35024 S + J904.20 — max lift 1380, max reach 73’2
• Model 35025 S + J903.20 — max lift 1130, max reach 74’4
• Model 35025 S + J904.20 — max lift 910, max reach 80’5
• Model 35026 S + J702.20 — max lift 1010, max reach 80’5
• Model 35026 S + J703.20 — max lift 910, max reach 80’5

Download the 35-ton crane brochure: 35_ton_pm_articulating_crane_brochure_english.pdf, 35_Ton_Knuckleboom_Brochure_metric.pdf.

Parts for this crane

We stock and ship parts and service items for this PM knuckle boom crane model, including cylinder seal kits and seals, sliding blocks and wear pads, Scanreco radio remote parts, and hydraulic fittings, hoses, valves and filters. Browse the full PM crane parts catalog, or call (877) 697-6272 with your model and serial number and we will match the exact part for your crane.
